Step by Step Comprehensive Detailed Explanation:
Dell PowerMax storage arrays utilize different device types for various purposes. Solutions Enabler (SYMCLI) and Unisphere for PowerMax are management tools that can interact with these device types.
Here’s a breakdown:
* SRDF Thin Devices (RDF1 or RDF2):These devices are specifically used for SRDF (Symmetrix Remote Data Facility) replication. RDF1 devices represent the local copy of data in an SRDF relationship, while RDF2 devices represent the remote copy. Both Solutions Enabler and Unisphere can manage these devices to configure and monitor SRDF replication.
* Internal Thin Devices (Int+TDEV):These are thin provisioned devices that reside within the PowerMax storage array. They are used for general storage purposes and can be managed by both Solutions Enabler and Unisphere for tasks like provisioning, allocating capacity, and monitoring performance.
* Thin Devices (TDEV):This is a general term for thin provisioned devices in PowerMax. Thin provisioning allows for efficient storage utilization by allocating capacity on demand.1Both Solutions Enabler and Unisphere can manage these devices.
Why other options are incorrect:
* B. Thin BCV Devices (BCV+TDEV):BCV (Business Continuance Volume) devices are used for creating point-in-time copies for disaster recovery. While Solutions Enabler can manage BCV devices, Unisphere for PowerMax has limited functionality for managing them directly.
* D. Data Devices (TDATs):TDATs are physical devices within the PowerMax array. While Solutions Enabler can interact with TDATs at a lower level, Unisphere for PowerMax primarily focuses on managing logical devices and storage groups.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of PowerMax devices and their management. It mentions the different device types and how they are used in the PowerMax environment.
* Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about Solutions Enabler commands for managing various device types, including SRDF devices, thin devices, and internal devices.
* Dell Unisphere for PowerMax 10.0.0 Online Help:The online help documentation for Unisphere for PowerMax explains how to manage different device types through the graphical user interface, including provisioning, monitoring, and configuring storage.

Step by Step Comprehensive Detailed Explanation:
A Gatekeeper in PowerMax is a small, dedicated device used for communication between the storage array and Solutions Enabler (SYMCLI), the command-line management interface. The default size of a Gatekeeper on a PowerMax array is3 cylinders.
While the size can technically be specified in kilobytes (KB), the traditional and preferred unit for Gatekeeper size is cylinders. This is because cylinders represent a specific number of blocks on the physical disks, and using cylinders helps ensure consistent sizing across different disk types and configurations.
Why other options are incorrect:
* A. 3 KB, C. 6 KB:These sizes are too small to be practical for a Gatekeeper.
* D. 6 cylinder:While older VMAX models might have used 6 cylinders, the current default for PowerMax is 3 cylinders.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information about Gatekeepers and their role in Solutions Enabler. While it might not explicitly state the default size, it mentions that Gatekeepers are typically small devices. You can find this document on the Dell Support website by searching for “Solutions Enabler CLI User Guide.”
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide might offer general information about Solutions Enabler and its configuration, which can provide context for understanding the purpose and sizing of Gatekeepers.

See the explanation for step by step solution.
Explanation:
Okay, I understand. The task is to verify the completion of Non-Disruptive Migrations (NDM) and then remove the migration environment using the Unisphere for PowerMax simulator.
Here’s a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:
Steps:
1. Launch the Simulator and Navigate to the Migration Section
* Open Unisphere for PowerMax in your web browser.
* Log in to the simulator.
* In the left-hand navigation pane, locate the section related to migrations. This is usually under either:
* Data Mobility
* Migration
* Expand the relevant section and click onMigrations(or a similar option like “Local Migrations” or
“NDM”). This will take you to the view where you can manage Non-Disruptive Migrations.
2. Verify Migration Session Status
* The Migrations view will list all current and past migration sessions.
* Look for the following status indicators to confirm that the migrations have completed successfully:
* Status:The status should typically be “Completed,” “Cutover Complete,” or a similar status indicating successful completion.
* Progress:If a progress bar or percentage is shown, it should be at 100% or show that all data has been synchronized.
* Important:If any sessions are still in a “Running,” “Synchronizing,” or other non-completed state, do not proceed with removing the migration environment. Wait for them to complete.
3. Select Completed Migrations for Removal
* Once you’ve verified that all relevant migration sessions are successfully completed, select the sessions that you want to remove.
* You can usually select sessions by:
* Clicking a checkbox next to each session.
* Clicking on the session itself (if the interface allows it).
4. Remove the Migration Environment
* After selecting the completed migration sessions, look for an action button or menu option to remove them. This might be labeled:
* “Remove”
* “Delete”
* “Cleanup”
* “Remove Session”
* Click the appropriate button to initiate the removal process.
* Confirmation:You will likely be prompted with a confirmation message to make sure you want to remove the selected migration sessions. Verify that you have selected the correct sessions and confirm the removal.
5. Verify Removal (Optional)
* After the removal operation completes, the Migrations view should refresh.
* Verify that the migration sessions you removed are no longer listed.

Step by Step Comprehensive Detailed Explanation:
The Port Attributes page in Unisphere for PowerMax allows storage administrators to configure various settings related to the front-end ports on the storage array. One of the functions available on this page isSelect Mgt Option.
This option allows you to specify how the port is used for management purposes:
* Dedicated Management Port:You can designate a port as a dedicated management port, which is used exclusively for communication with management tools like Unisphere and Solutions Enabler.
* Shared Management Port:You can configure a port to be shared for both management traffic and host I/O traffic.
This flexibility allows you to optimize port usage and segregate management traffic if needed.
Why other options are incorrect:
* A. Manage Protocol:Protocol settings (like FC or iSCSI) are typically configured elsewhere in Unisphere, not on the Port Attributes page.
* C. Volume Set Addressing:Volume Set Addressing is a feature related to mainframe connectivity and is not directly managed through the Port Attributes page.
* D. ORS Ceiling:ORS (Open Replicator Solutions) settings are managed separately and not through the Port Attributes page.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about the Port Attributes page and the available configuration options, including the “Select Mgt Option” function. You can access this help within Unisphere itself or on the Dell Support website.
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about port management and configuration in PowerMax.

Explanation:

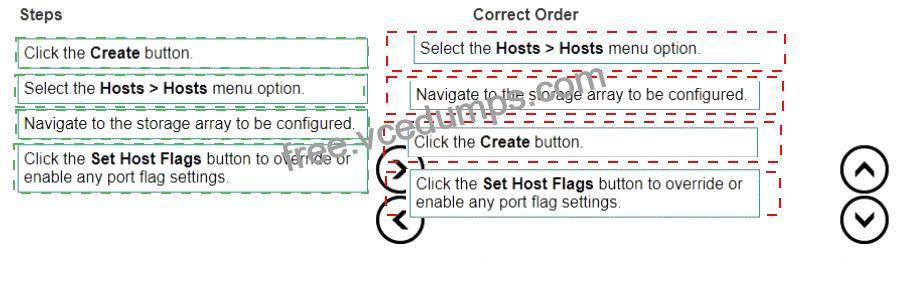

Here’s the correct sequence of actions, along with explanations:
Correct Order:
* Select the Hosts > Hosts menu option.
* Why:This is the initial navigation step within Unisphere. You need to go to the “Hosts” section where you can manage and configure host connections to the PowerMax array.
* Navigate to the storage array to be configured.
* Why:In an environment with multiple PowerMax arrays, you need to select the specific array for which you want to configure host settings.
* Click the Create button.
* Why:This initiates the “Create Host” wizard, which will guide you through the process of adding a new host and configuring its settings, including the host flags.
* Click the Set Host Flags button to override or enable any port flag settings.
* Why:Within the Create Host wizard, you’ll reach a point where you can configure host flags.
Clicking the “Set Host Flags” button allows you to modify these flags.
* Host Flags:These flags are settings that define how the PowerMax array interacts with the host.
They control things like:
* SCSI support:Different variations of SCSI protocols.
* High availability:Features like auto-negotiation of failover.
* Other host-specific behaviors.
* Select the Hosts > Hosts menu option.
* Navigate to the storage array to be configured.
* Click the Create button.
* Click the Set Host Flags button to override or enable any port flag settings.

Step by Step Comprehensive Detailed Explanation:
When upgrading Solutions Enabler (SE) on a Linux host, the symcfg discover command plays a crucial role in preparing for the upgrade. Its primary function in this context is to:
* Identify the running SE version:Before proceeding with the upgrade, it’s essential to know the current version of Solutions Enabler installed on the host. The symcfg discover command gathers information about the existing SE environment, including the version number. This information is used to determine the appropriate upgrade path and ensure compatibility.
Why other options are incorrect:
* B. Verifies that the SE daemons have been stopped:While stopping SE daemons is a necessary step before the upgrade, it’s not the function of the symcfg discover command.
* C. Builds the SYMAPI database:The SYMAPI database is typically built during the initial installation or after a fresh discovery.
* D. Creates backups of the configuration directories:Backups are important, but they are usually handled separately as part of the upgrade process, not by the symcfg discover command itself.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Solutions Enabler 10.0.0 Installation Guide:This guide provides detailed instructions for upgrading Solutions Enabler on different operating systems, including Linux. It explains the steps involved and the role of the symcfg discover command in the upgrade process. You can find this document on the Dell Support website by searching for “Solutions Enabler Installation Guide.”

Step by Step Comprehensive Detailed Explanation:
The Dell PowerMax 2500 is a mid-range storage array designed for enterprise environments. It offers a balance of performance, capacity, and scalability.
* Scalability:The PowerMax 2500 scales from a single node pair to a maximum of two node pairs. This allows for increased performance and capacity as needed. Each node pair provides processing power, cache memory, and connectivity.
Why other options are incorrect:
* A. Supports up to 16 nodes:This is incorrect. The PowerMax 8500, the higher-end model, supports up to 16 nodes.
* B. Supports up to 15 PB of effective capacity:While the PowerMax 2500 offers significant capacity, its maximum effective capacity is lower than 15 PB.
* D. Uses Storage Class Memory:Both the PowerMax 2500 and 8500 utilize Storage Class Memory (SCM) for enhanced performance.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell PowerMax 2500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 2500, including its scalability options, node configurations, and capacity limits. You can find this document on the Dell Support website by searching for “PowerMax
2500 Hardware Information Guide.”
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It highlights the key differences in scalability and performance between the two models.

Explanation:
Okay, I’m ready to arrange those steps for creating a snapshot in Unisphere for PowerMax in the correct order, based on the image provided.

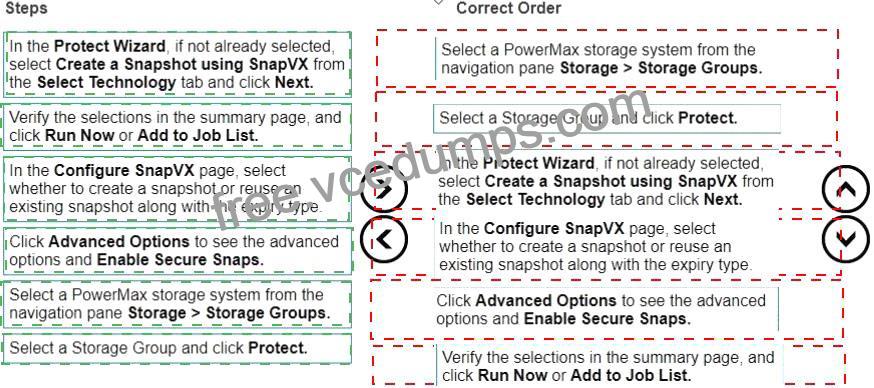

Here is the correct sequence, along with explanations:
Correct Order:
* Select a PowerMax storage system from the navigation pane Storage > Storage Groups.
* Why:This is the starting point in Unisphere. You need to navigate to the “Storage Groups” section within the specific PowerMax array where you intend to create the snapshot.
* Select a Storage Group and click Protect.
* Why:You’re choosing the storage group that contains the data you want to snapshot. Clicking
“Protect” initiates the process of creating a data protection operation (in this case, a snapshot).
* In the Protect Wizard, if not already selected, select Create a Snapshot using SnapVX from the Select Technology tab and click Next.
* Why:This specifies that you want to use the SnapVX technology to create a snapshot. SnapVX is the snapshot feature in PowerMax arrays.
* In the Configure SnapVX page, select whether to create a snapshot or reuse an existing snapshot along with the expiry type.
* Why:Here, you define the core parameters of the snapshot:
* Create a new snapshot:This is what you’d typically do for a new point-in-time copy.
* Reuse an existing snapshot:In some cases, you might want to update an existing snapshot.
* Expiry type:This determines how long the snapshot will be retained (e.g., a specific duration or until manually deleted).
* Click Advanced Options to see the advanced options and Enable Secure Snaps.
* Why:This allows you to configure more granular settings for the snapshot, including:
* Secure Snaps:Enabling this option prevents the snapshot from being deleted before its expiry time, adding an extra layer of protection.
* Verify the selections in the summary page, and click Run Now or Add to Job List.
* Why:This is the final step before creating the snapshot:
* Summary page:Review all the settings you’ve configured.
* Run Now:Immediately creates the snapshot.
* Add to Job List:Schedules the snapshot creation for later.
* Select a PowerMax storage system from the navigation pane Storage > Storage Groups.
* Select a Storage Group and click Protect.
* In the Protect Wizard, if not already selected, select Create a Snapshot using SnapVX from the Select Technology tab and click Next.
* In the Configure SnapVX page, select whether to create a snapshot or reuse an existing snapshot along with the expiry type.
* Click Advanced Options to see the advanced options and Enable Secure Snaps.
* Verify the selections in the summary page, and click Run Now or Add to Job List.

Step by Step Comprehensive Detailed Explanation:
In PowerMaxOS 5978, the largest TDEV (Thin Device) that can be created is64TB. This represents the maximum size for a single, thinly provisioned storage volume on a PowerMax array running that version of the operating system.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of PowerMax features and capabilities, including information about storage device sizes and limits.
* Dell Solutions Enabler 10.0.0 CLI User Guide:This guide might contain details about the maximum size of TDEVs that can be created using SYMCLI commands.

Step by Step Comprehensive Detailed Explanation:

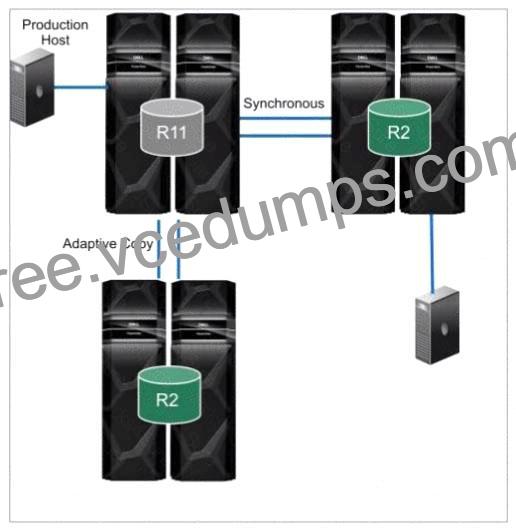

The topology shown in the exhibit depictsCascaded SRDF. This SRDF configuration involves three storage arrays (or sites) connected in a chained or cascaded manner.
Here’s how it works:
* Primary Site (R1):The production host is connected to the primary storage array (R1).
* Intermediate Site (R2):The primary array (R1) synchronously replicates data to an intermediate array (R2).
* Remote Site (R2):The intermediate array (R2) then asynchronously replicates data to a remote array (also labeled R2 in the diagram).
This cascading setup provides a multi-hop disaster recovery solution, where data is first replicated synchronously to a nearby site for high availability and then asynchronously replicated to a further remote site for disaster recovery.
Why other options are incorrect:
* B. SRDF/Star:SRDF/Star involves a central array replicating to multiple remote arrays in a star-like pattern.
* C. SRDF/Metro:SRDF/Metro is designed for synchronous replication over short distances, typically within a metropolitan area.
* D. Concurrent SRDF:Concurrent SRDF allows multiple SRDF relationships to exist simultaneously for the same device.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about different SRDF configurations, including Cascaded SRDF. You can find this document on the Dell Support website by searching for “Solutions Enabler SRDF Family CLI User Guide.”
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including various topologies and use cases.

See the explanation for step by step solution.
Explanation:

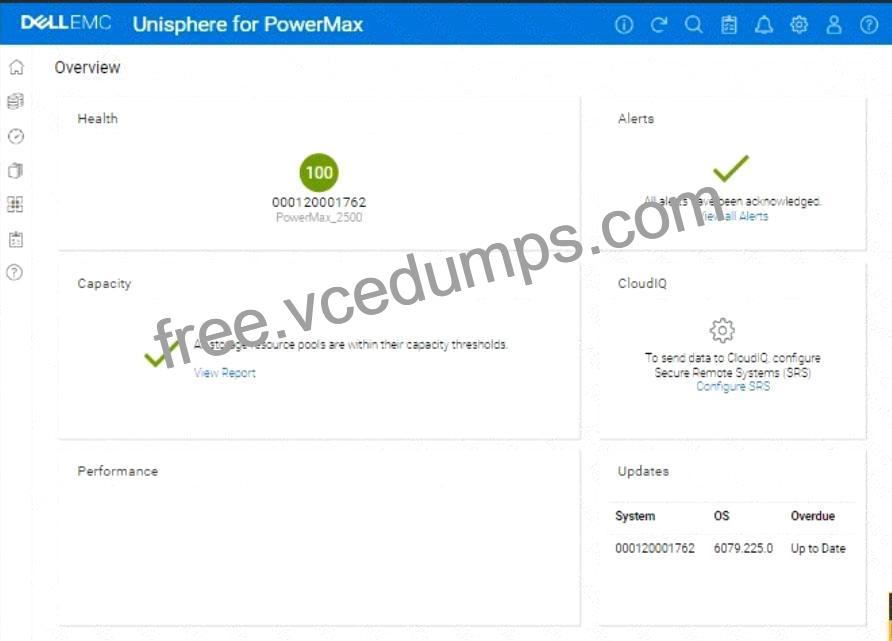

Okay, I understand. We need to configure a recurring exclusion window in the Unisphere for PowerMax simulator to exclude performance load during a weekly backup that occurs every Sunday from 8:00 AM to 9:
00 AM. This exclusion will prevent the backup load from affecting system-level compliance calculations.
Here’s a step-by-step guide on how to do this, based on typical Unisphere functionality:
Steps:
1. Launch the Simulator and Navigate to the System Settings
* Open Unisphere for PowerMax in your web browser.
* Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the image).
* In the left-hand navigation pane, locate the settings or configuration section. The exact location might vary slightly, but it’s often found under:
* Home>System Settings
* Settings(an icon representing settings, like a gear)
* Admin>System
* In this instance, click thegearicon on the top right corner of the Unisphere interface.
2. Find the Exclusion Window Settings
* Within the system settings, look for a section related to performance monitoring, metrics, or thresholds.
* Within this section, search for an option to configure “Exclusion Windows,” “Scheduled Exclusions,” or something similar. The exact name may vary.
3. Create a New Exclusion Window
* Click on a button or link to create a new exclusion window. This might be labeled:
* “Create”
* “Add”
* “+”(a plus icon)
* A new window or panel will appear, allowing you to configure the exclusion window settings.
4. Configure the Exclusion Window Settings
* Name (Optional):You can give the exclusion window a descriptive name, such as “Weekly Backup Exclusion.”
* Type:Select”Recurring”or”Repeating”as the exclusion window type.
* Schedule:
* Day of the Week:Select”Sunday”.
* Start Time:Set the start time to 08:00 (or 8:00 AM). Make sure the time is in 24-hour format or that you correctly select AM if using 12-hour format.
* End Time:Set the end time to 09:00 (or 9:00 AM).
* Scope/Target:Since we want this exclusion to apply at the system level, make sure the scope is set to
“System”or the entire array (SID 1762 in this case). You might not need to explicitly select this if system-level is the default.
* Components/Metrics:In some Unisphere versions, you can choose which components or metrics to exclude. In our case, we want to exclude the load for “all components.” If there’s anoption to select components, either choose “All” or leave it at the default (which likely includes all components).
5. Save the Exclusion Window
* After configuring all the settings, review them carefully to make sure they are correct.
* Click the button to save the exclusion window. This might be labeled:
* “Create”
* “Save”
* “OK”
* “Apply”
6. Verify Exclusion Window Creation (Optional)
* After the exclusion window is created, you can usually verify its settings in the exclusion window list.
* You should see the new exclusion window listed with the correct schedule (Sunday, 8:00 AM – 9:00 AM) and scope (system level).

Step by Step Comprehensive Detailed Explanation:
The “Data Protection” menu in Unisphere for PowerMax provides a centralized location for managing various data protection features and functionalities. Specifically, it allows storage administrators to:
* Configure and manage SRDF groups:SRDF (Symmetrix Remote Data Facility) is a key technology for disaster recovery and data replication in PowerMax. The Data Protection menu enables administrators to create, modify, and monitor SRDF groups, establish replication relationships between devices, and control replication settings.
Why other options are incorrect:
* A. Convert front-end ports to SRDF ports:This is typically done through the “System > Hardware” or “Connectivity” sections of Unisphere, where port configurations are managed.
* C. Configure Data Protection for z Systems:While PowerMax supports mainframe environments, the specific configuration for z Systems might involve specialized tools or interfaces.
* D. Review the audit log for unwanted logins:Audit logs and security-related events are usually found in the “Monitoring” or “Security” sections of Unisphere.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides a detailed explanation of the functionalities available in each menu, including the Data Protection menu. You can access this help within Unisphere itself or on the Dell Support website.
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of data protection features in PowerMax and how they are managed through Unisphere.
